PrintPreview with images and text

[jota]

Hello

In some documents that are displayed with TRVPrintPreview, composed of images and texts, the images appear correctly but part of the text appears outside the left margin.

I have checked that if I put bullets to the text, it fits correctly.

Any orientation or idea of why it occurs?

Is it caused by the configuration of the TRichViewEdit? (other documents with images and text appear correctly).

Thanks in advances.

[Sergey Tkachenko]

May be paragraphs have negative LeftIndent and/or FirstIndent?

[jota]

Hello.

It´s not problem with images.

It happens with TRichViewEdit.bidimode property equal to rvbdUnspecified. Changed to rvbdLeftoRight works fine.

Thanks

[jota]

It happens with TRichViewEdit.bidimode property equal to rvbdUnspecified. Changed to rvbdLeftoRight works fine.

Ignore previous solution since it is erroneous.The problem persists
If I insert bullet to the previous text, it adjusts to the left margin correctly

[Sergey Tkachenko]

I still think that the problem is in indents. When you apply a paragraph list (bullets/numbering) to the paragraph, you also apply the list level margin. It overrides paragraph's LeftMargin (or RightMargin, for right-to-left paragraphs).

You can save this document as RVF file and send to me, or attach to this topic.

[jota]

Hello

I also think you're right but I can not find a way to solve it.

I attach two files, one with bullets that has a correct indentation and other without bullets with erroneous indentation (left of the left margin)

Thanks in advance

[Sergey Tkachenko]

Sorry, I see nothing wrong with your "bad" file.
All indents are zeros,

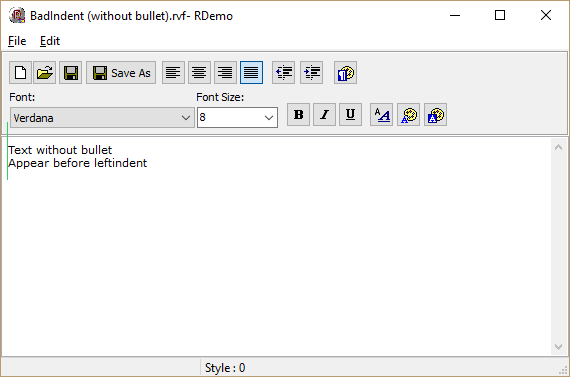

This is how it looks after loading in "Editor 2" demo:


LeftMarign = 5 pixels, I added a green line showing it.

[jota]

Hello

I see text correctly in my tdbrichviewedit (and in Editor2 demo), but
in PrintPreview text appears before left margin

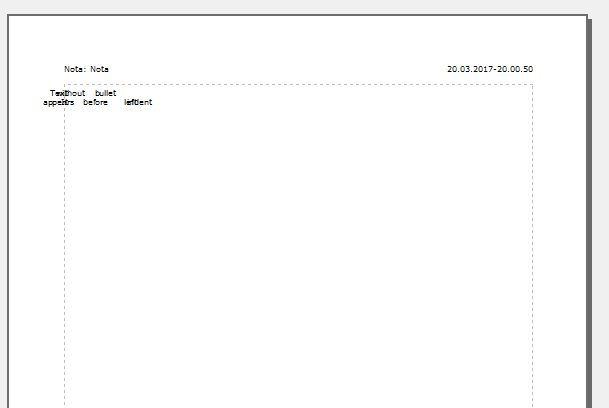

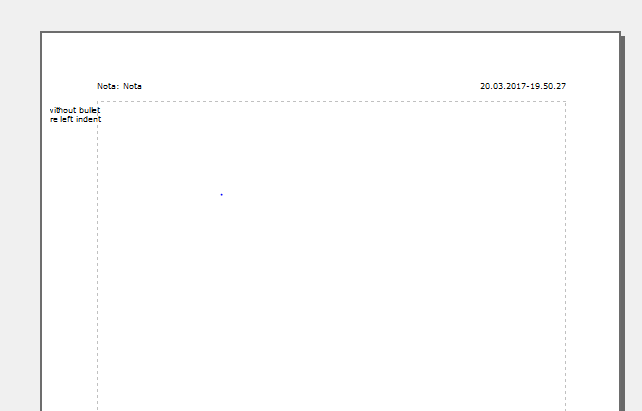

I attach two files: ppl (printpreview with rvaleft alignment in tdbrichviewedit) and ppj (printpreview with rvajustify alignment in tdbrichviewedit)

Thanks in advance

[jota]

Hello, I have found my error.

It is not in the tdbrichviewedit but in PrintPreview, specifically in onpageprepaint event, there is an align modification with settextalign that causes the problem.

I have corrected it by saving the alignment previously and restoring it later

Sorry and thanks.
